CLL

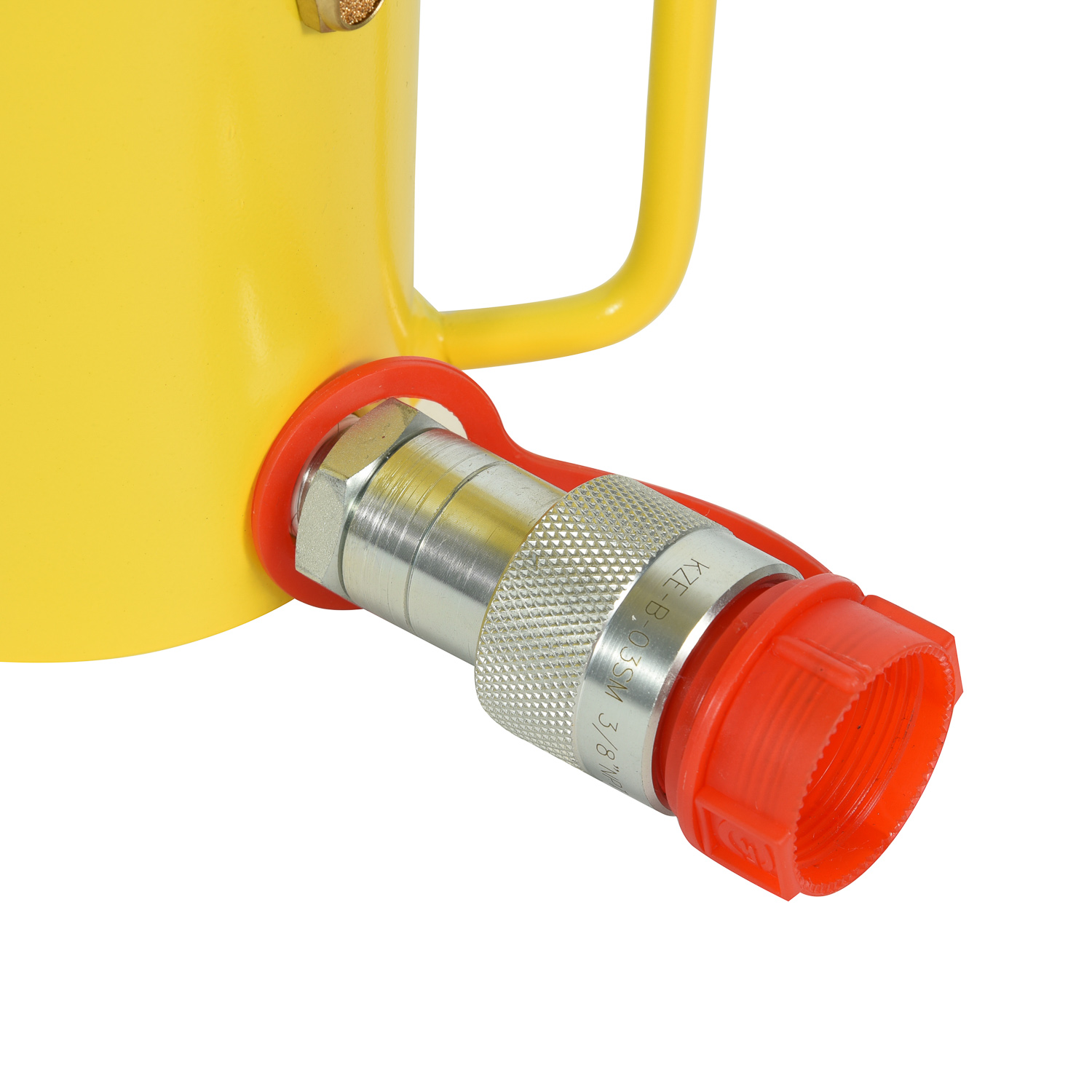

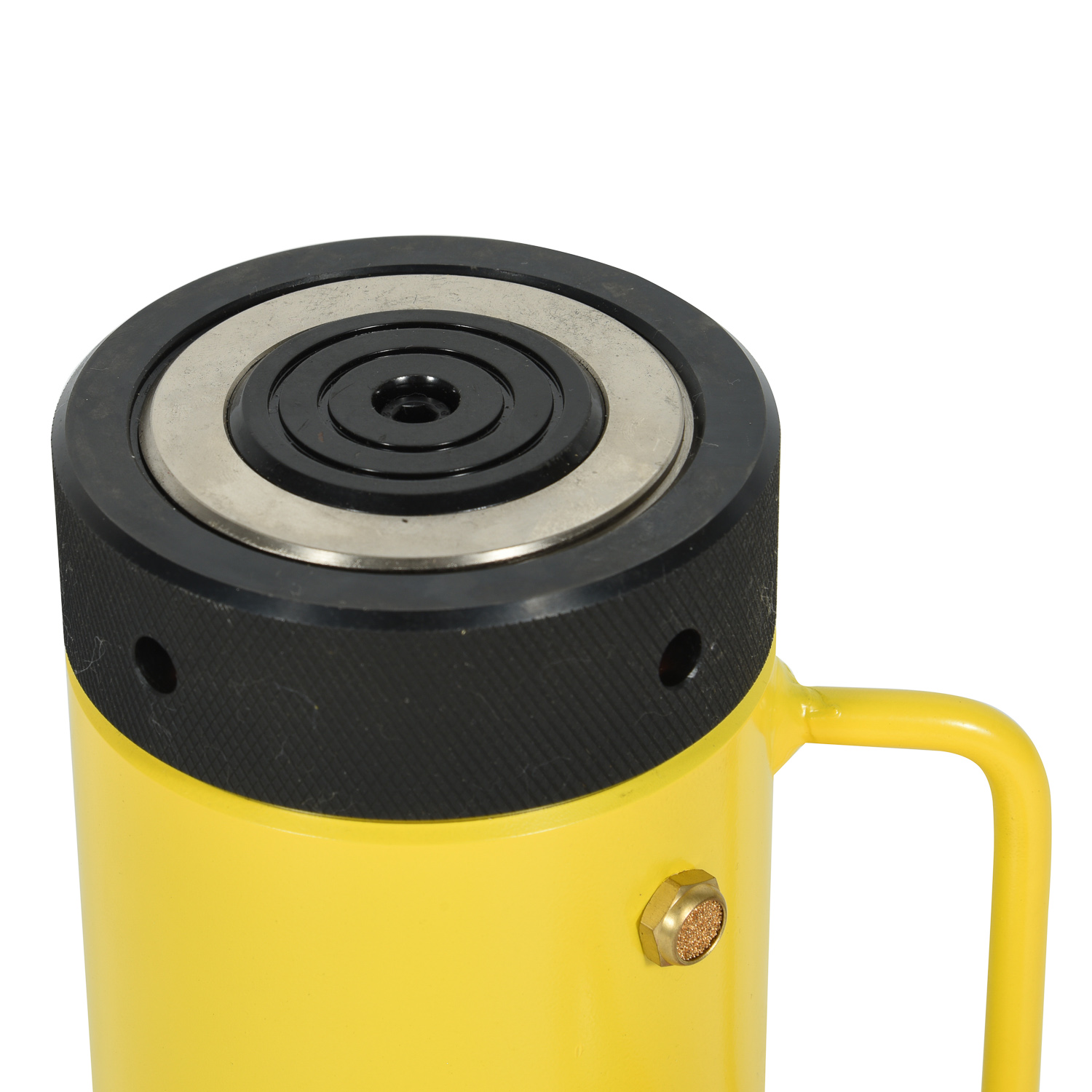

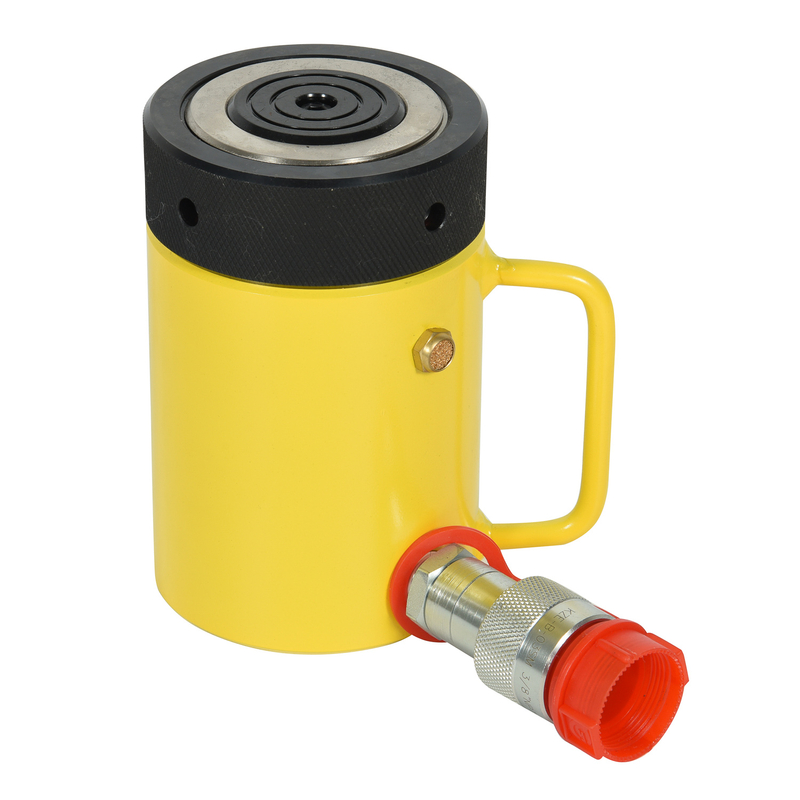

The CLL series is a range of single-acting, load return hydraulic cylinders with a safety lock nut, covering 50 ton to 1000 ton (496 kN to 10260 kN) with strokes from 50 mm to 300 mm. The lock nut provides mechanical load holding for long-period support, and the maximum operating pressure is 700 bar. Every model is supplied with a SQB-3/8UF female coupler and a dust cap.

Availability:



Inquire Add to Basket

Product Parameters

Model Number	Handle Type	Cylinder Cap. (ton)	Cylinder Cap. (kN)	Stroke (mm)	Effective Area (cm²)	Oil Cap. (cm³)	Coll. Height (mm)	Ext. Height (mm)	Weight (kg)	Outside Diam. (mm)	Bore Diam. (mm)	Plunger Diam. (threaded)	Tilt Saddle Model	Saddle Diam. J1 (mm)	Saddle Height K1 (mm)
CLL-502	(S)	50	496	50	70.9	355	164	214	15	125	95	Tr95x4	XKCAT-100	71	24
CLL-504	(S)	50	496	100	70.9	709	214	314	20	125	95	Tr95x4	XKCAT-100	71	24
CLL-506	(S)	50	496	150	70.9	1064	264	414	25	125	95	Tr95x4	XKCAT-100	71	24
CLL-508	(S)	50	496	200	70.9	1418	314	514	30	125	95	Tr95x4	XKCAT-100	71	24
CLL-5010	(S)	50	496	250	70.9	1773	364	614	35	125	95	Tr95x4	XKCAT-100	71	24
CLL-5012	(S)	50	496	300	70.9	2127	414	714	40	125	95	Tr95x4	XKCAT-100	71	24
CLL-1002	(S)	100	929	50	132.7	664	187	237	30	165	130	Tr130x6	XKCAT-100	71	24
CLL-1004	(S)	100	929	100	132.7	1327	237	337	39	165	130	Tr130x6	XKCAT-100	71	24
CLL-1006	(S)	100	929	150	132.7	1991	287	437	48	165	130	Tr130x6	XKCAT-100	71	24
CLL-1008	(S)	100	929	200	132.7	2654	337	537	56	165	130	Tr130x6	XKCAT-100	71	24
CLL-10010	(S)	100	929	250	132.7	3318	387	637	64	165	130	Tr130x6	XKCAT-100	71	24
CLL-10012	(S)	100	929	300	132.7	3981	437	737	73	165	130	Tr130x6	XKCAT-100	71	24
CLL-1502	(S)	150	1390	50	198.6	993	209	259	53	205	159	Tr159x6	XKCAT-200	130	20
CLL-1504	(S)	150	1390	100	198.6	1986	259	359	66	205	159	Tr159x6	XKCAT-200	130	20
CLL-1506	(S)	150	1390	150	198.6	2979	309	459	78	205	159	Tr159x6	XKCAT-200	130	20
CLL-1508	(S)	150	1390	200	198.6	3972	359	559	92	205	159	Tr159x6	XKCAT-200	130	20
CLL-15010	(S)	150	1390	250	198.6	4965	409	659	104	205	159	Tr159x6	XKCAT-200	130	20
CLL-15012	(S)	150	1390	300	198.6	5958	459	759	117	205	159	Tr159x6	XKCAT-200	130	20
CLL-2002	(S)	200	1859	50	265.6	1330	243	293	83	235	184	Tr184x6	XKCAT-200	130	20
CLL-2006	(S)	200	1859	150	265.6	3989	343	493	117	235	184	Tr184x6	XKCAT-200	130	20
CLL-20012	(S)	200	1859	300	265.6	7995	493	793	170	235	184	Tr184x6	XKCAT-200	130	20
CLL-2502	(S)	250	2562	50	366.1	1832	249	299	116	275	216	Tr216x6	XKCAT-250	150	21
CLL-2506	(S)	250	2562	150	366.1	5496	349	499	162	275	216	Tr216x6	XKCAT-250	150	21
CLL-25012	(S)	250	2562	300	366.1	10976	499	799	234	275	216	Tr216x6	XKCAT-250	150	21
CLL-3002	(S)	300	3193	50	456.2	2281	295	345	173	310	241	Tr241x6	XKCAT-300	195	75
CLL-3006	(S)	300	3193	150	456.2	6843	395	545	233	310	241	Tr241x6	XKCAT-300	195	75
CLL-30012	(S)	300	3193	300	456.2	13740	545	845	323	310	241	Tr241x6	XKCAT-300	195	75
CLL-4002	(S)	400	3919	50	559.9	2800	335	385	250	350	267	Tr266x6	XKCAT-400	225	85
CLL-4006	(S)	400	3919	150	559.9	8399	435	585	327	350	267	Tr266x6	XKCAT-400	225	85
CLL-40012	(S)	400	3919	300	559.9	16800	585	885	441	350	267	Tr266x6	XKCAT-400	225	85
CLL-5002	(S)	500	5118	50	731.1	3653	375	425	367	400	305	Tr305x6	XKCAT-500	250	91
CLL-5006	(S)	500	5118	150	731.1	10967	475	625	466	400	305	Tr305x6	XKCAT-500	250	91
CLL-50012	(S)	500	5118	300	731.1	21930	625	925	617	400	305	Tr305x6	XKCAT-500	250	91
CLL-6002	(S)	600	5983	50	854.8	4277	395	445	446	430	330	Tr330x6	XKCAT-600	275	96
CLL-6006	(S)	600	5983	150	854.8	12830	495	645	562	430	330	Tr330x6	XKCAT-600	275	96
CLL-60012	(S)	600	5983	300	854.8	25650	645	945	737	430	330	Tr330x6	XKCAT-600	275	96
CLL-8002	(S)	800	8238	50	1176.9	5882	455	505	709	505	387	Tr387x6	XKCAT-800	320	123
CLL-8006	(S)	800	8238	150	1176.9	17645	555	705	870	505	387	Tr387x6	XKCAT-800	320	123
CLL-80012	(S)	800	8238	300	1176.9	35370	705	1005	1110	505	387	Tr387x6	XKCAT-800	320	123
CLL-10002	(S)	1000	10260	50	1466.4	7329	495	545	949	560	432	Tr432x6	XKCAT-1000	360	136
CLL-10006	(S)	1000	10260	150	1466.4	21986	595	745	1141	560	432	Tr432x6	XKCAT-1000	360	136
CLL-10012	(S)	1000	10260	300	1466.4	43980	745	1045	1430	560	432	Tr432x6	XKCAT-1000	360	136

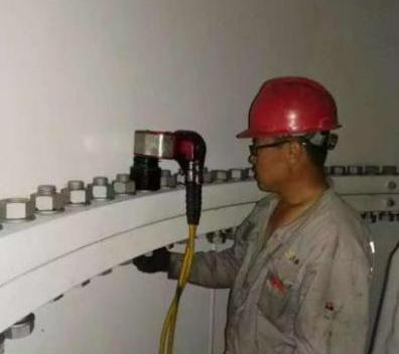

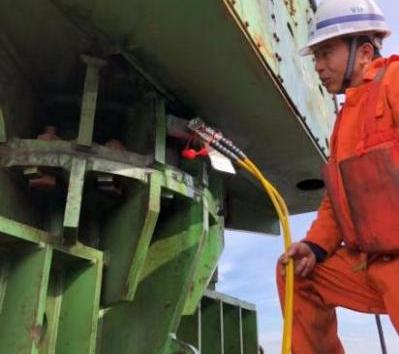

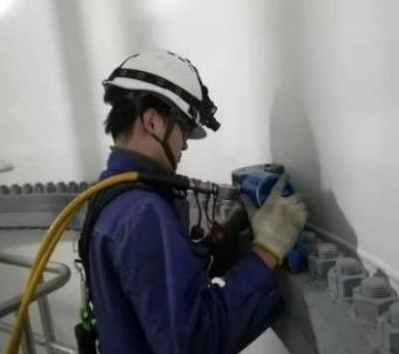

Working Condition Example

Size Chart

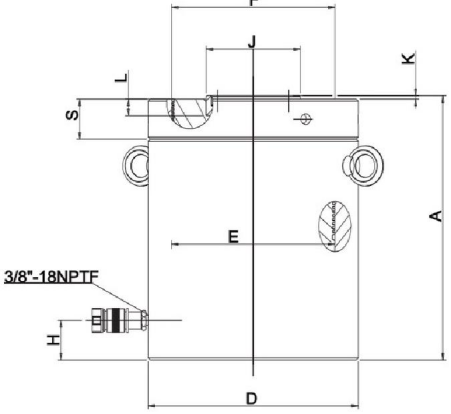

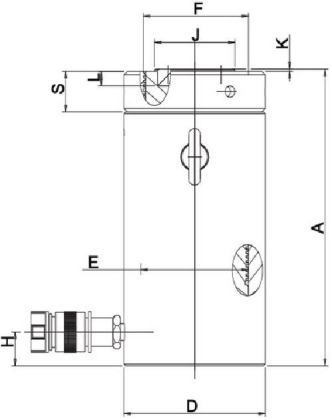

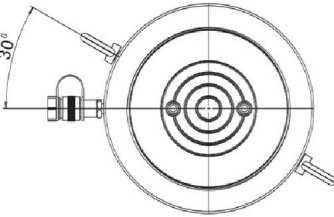

Outer Dimension
Base to Advance Port H(mm)	Stand. Saddle Diam. J(mm)	Saddle Protrusion from Plgr. K(mm)	Depth of Plunger Hole L(mm)	Lock Nut Height S(mm)	Weight (kg)
30	71	2	15	36	15
30	71	2	15	36	20
30	71	2	15	36	25
30	71	2	15	36	30
30	71	2	15	36	35
30	71	2	15	36	40
30	71	2	15	44	30
30	71	2	15	44	39
30	71	2	15	44	48
30	71	2	15	44	56
30	71	2	15	44	64
30	71	2	15	44	73
39	130	2	25	44	53
39	130	2	25	44	66
39	130	2	25	44	78
39	130	2	25	44	92
39	130	2	25	44	92
39	130	2	25	44	104
39	130	2	25	44	117
50	130	2	25	50	83
50	130	2	25	50	117
50	130	2	25	50	170
50	150	2	25	56	116
50	150	2	25	56	162
50	150	2	25	56	234
59	139	5	25	60	173
59	139	5	25	60	233
59	139	5	25	60	323
59	139	5	25	60	323
70	159	5	25	70	250
70	159	5	25	70	327
70	159	5	25	70	441
80	179	5	25	80	367
80	179	5	25	80	466
80	179	5	25	80	617
85	194	5	25	85	446
85	194	5	25	85	562
85	194	5	25	85	737
100	224	5	25	100	709
100	224	5	25	100	870
100	224	5	25	100	1110
110	249	5	25	110	949
110	249	5	25	110	1141
110	249	5	25	110	1430

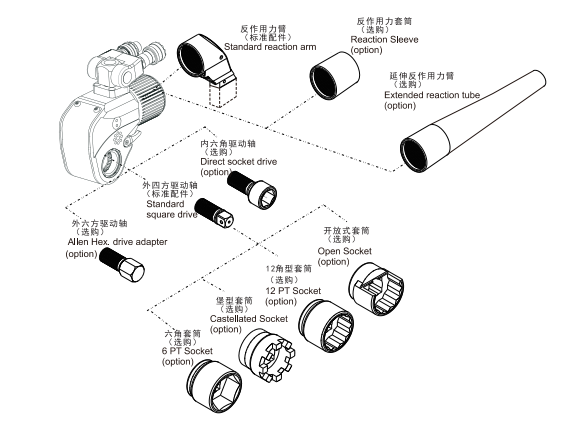

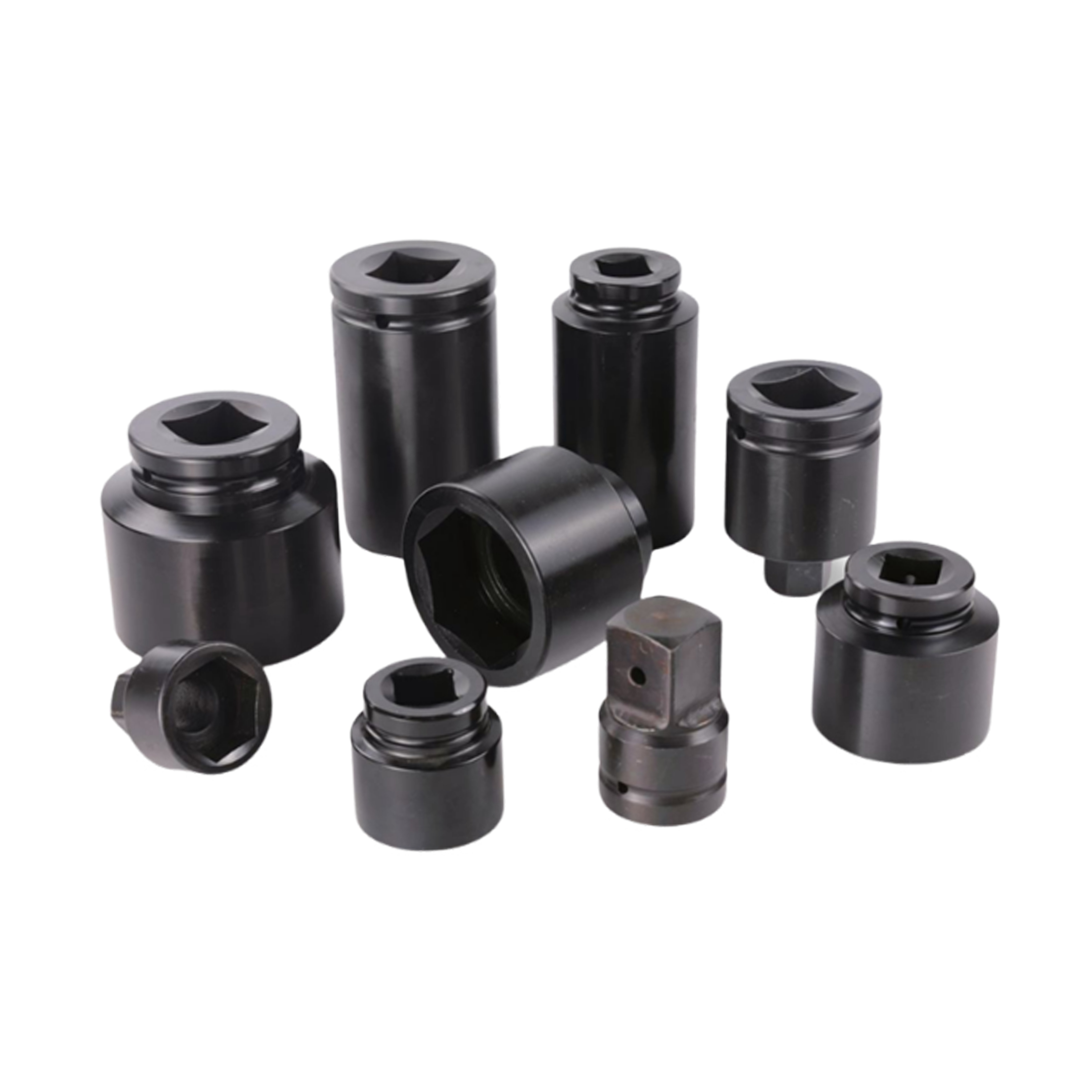

Optional Attachment

The MDW square drive hydraulic torque wrench range spans 112 to 72,000 N·m in 11 standard models, with bolt capacity from M14 to M125. A single tool family covers light flange work through heavy structural bolting, so your crew standardizes on one platform with common pumps, hoses and high-strength sockets instead of mixing tools from different suppliers.

hydraulic torque wrench calibration wind turbine assembly hydraulic torque wrench calibration square drive hydraulic torque wrench

Related Products

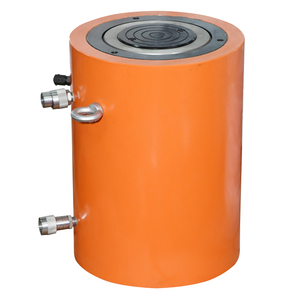

CLRG

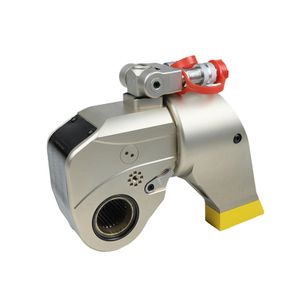

Square-Drive Hydraulic Torque Wrench

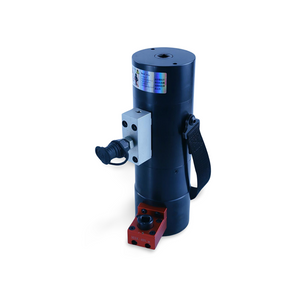

MTD Bolt Tensioner
