CLRG

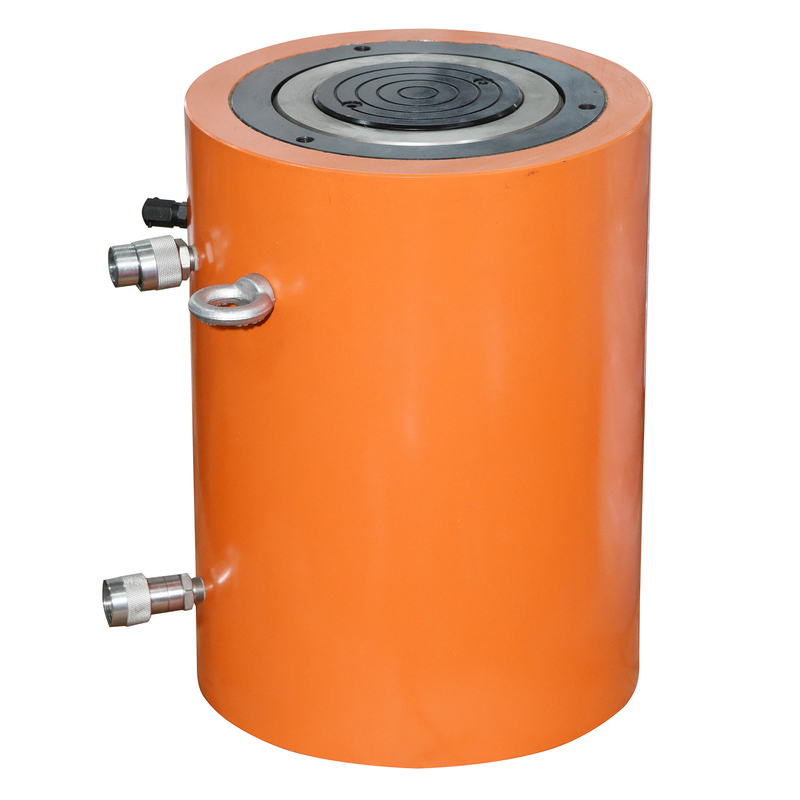

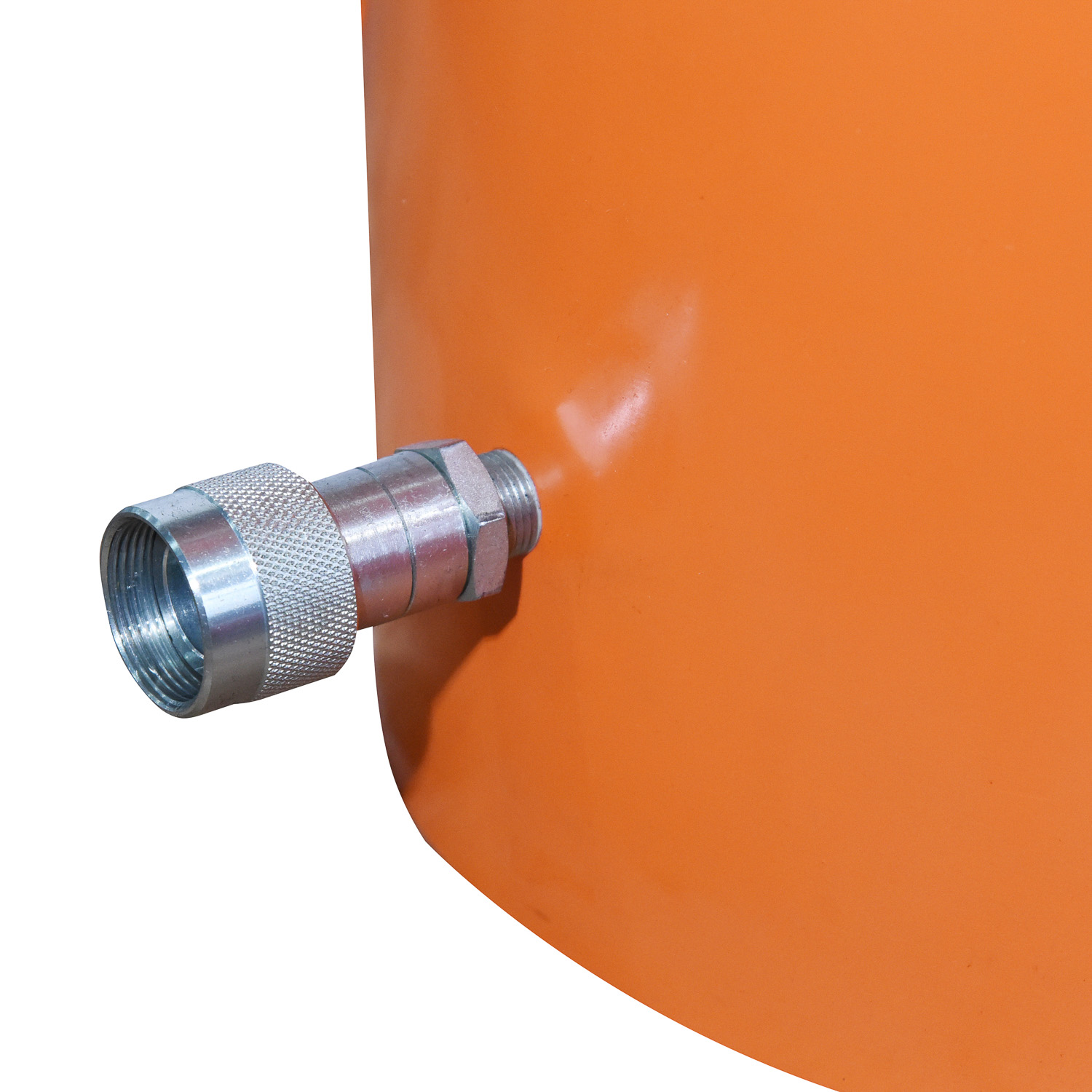

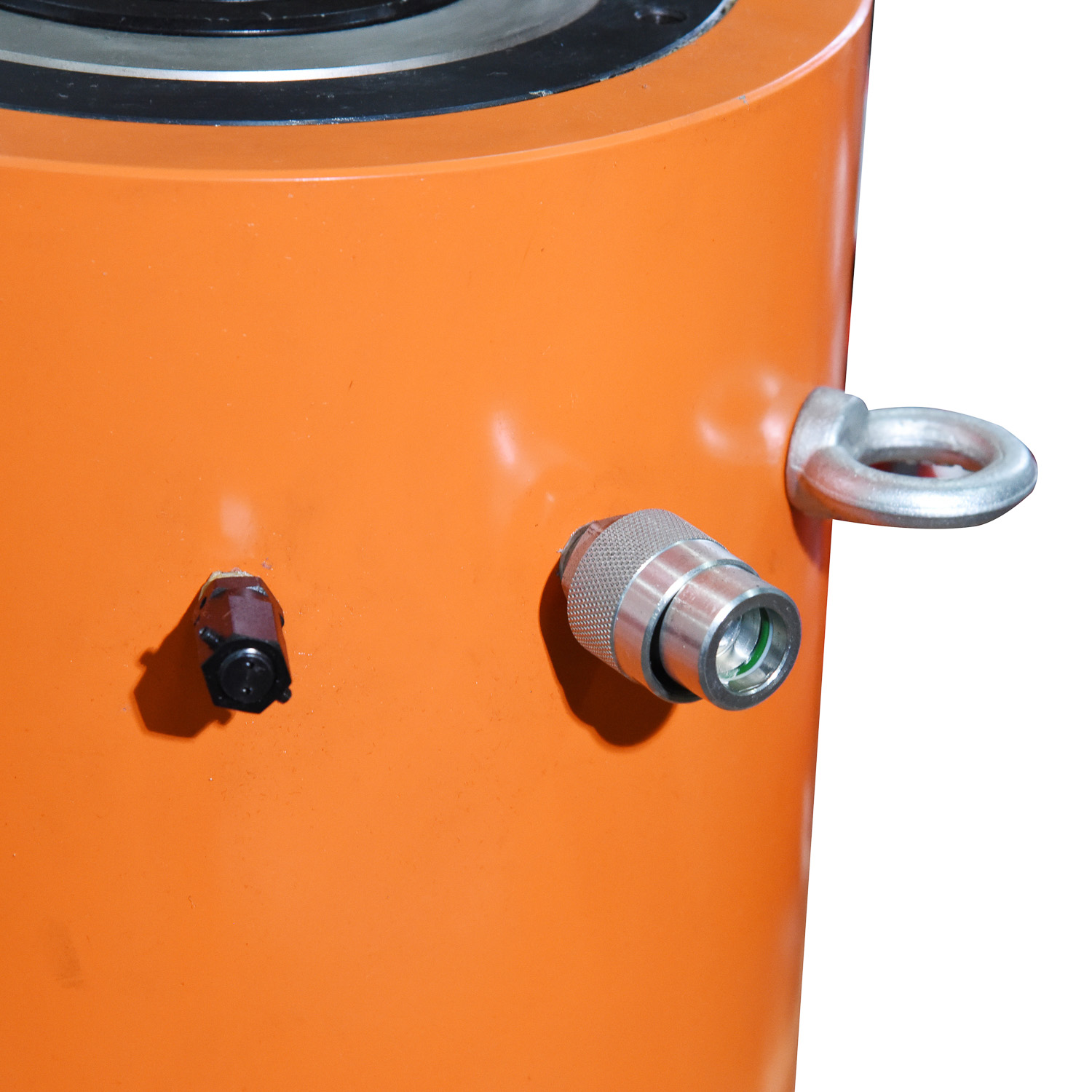

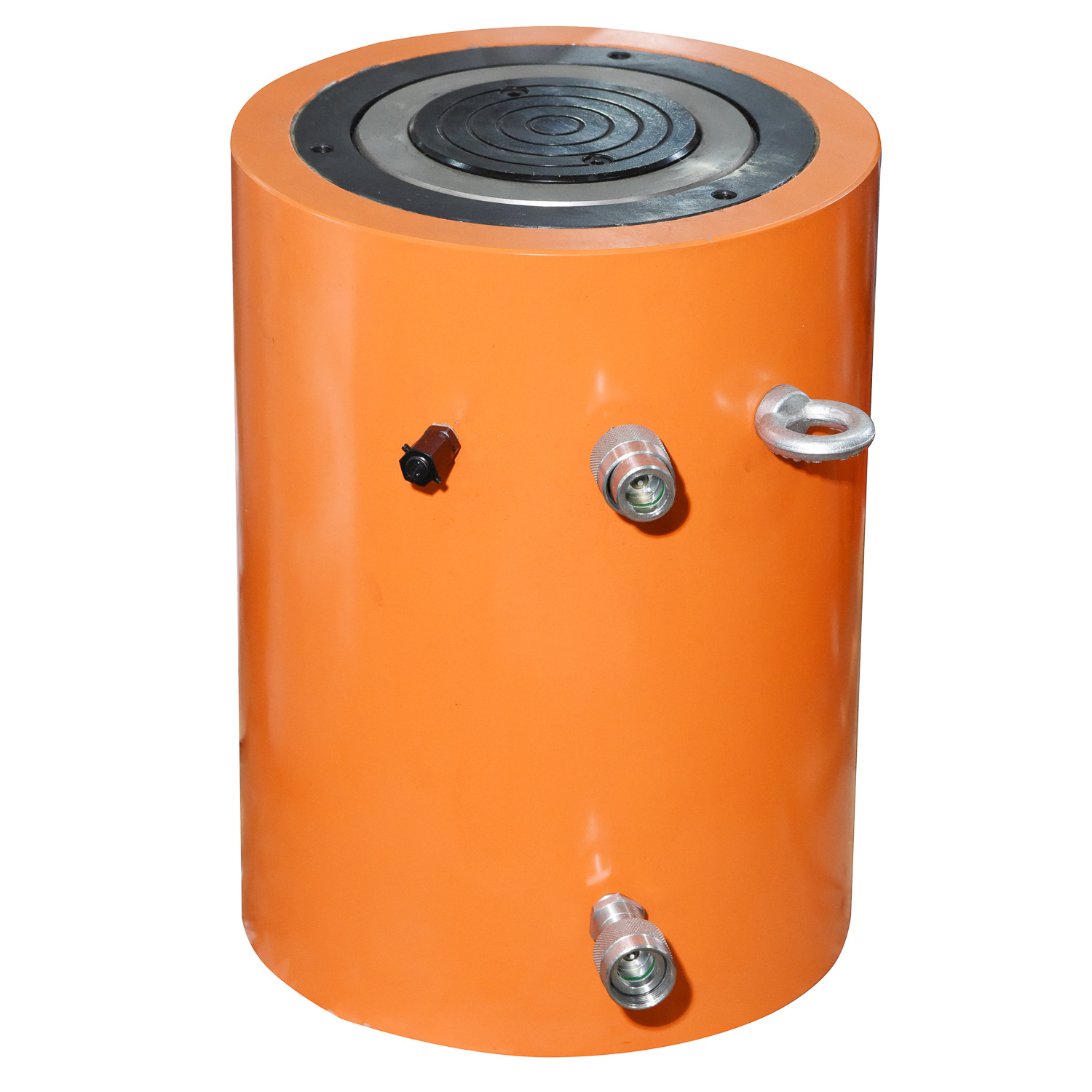

The CLRG series is a range of double-acting, high tonnage hydraulic cylinders covering 50 ton to 1000 ton with strokes from 50 mm to 400 mm. Because they are double-acting, hydraulic power drives the plunger in both directions, so they push and pull under control. Base mounting holes and hardened grooved saddles are standard, and every model comes with a SQB-3/8UF female coupler and a dust cap.

Availability:



Inquire Add to Basket

Product Parameters

Model Number	Handle Type	Cylinder Cap. (ton)	Cylinder Cap. (kN)	Stroke (mm)	Max Push Force (kN)	Max Pull Force (kN)	Push Effective Area (cm²)	Pull Effective Area (cm²)	Push Oil Cap. (cm³)	Pull Oil Cap. (cm³)	Coll. Height (mm)	Ext. Height (mm)	Weight (kg)	Outside Diam. D (mm)	Cyl. Bore Diam. E (mm)	Plunger Diam. F (mm)	Base to Advance Port H (mm)	Top to Retract Port I (mm)	Standard Saddle Diam. J (mm)	Saddle Protrusion K (mm)	Depth of Plunger Hole L (mm)	Bolt Cir. Diam. U (mm)	Base Thread V	Thread Depth Z (mm)	Tilt Saddle Model	Saddle J1 (mm)	Saddle K1 (mm)
CLRG-502	(S)	50	539	50	539	269	76.2	37.7	385	192	162	212	17	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-504	(S)	50	539	100	539	269	76.2	37.7	770	385	212	312	20	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-506	(S)	50	539	150	539	269	76.2	37.7	1155	577	262	412	23	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-508	(S)	50	539	200	539	269	76.2	37.7	1540	770	312	512	27	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-5010	(S)	50	539	250	539	269	76.2	37.7	1924	962	362	612	31	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-5012	(S)	50	539	300	539	269	76.2	37.7	2309	1155	412	712	34	130	98.6	70	42	33	50	1	19	65	2xM12	22	XKCATG-50	50	24
CLRG-1002	(S)	100	929	50	929	433	132.7	61.9	664	309	182	232	29	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-1004	(S)	100	929	100	929	433	132.7	61.9	1327	619	232	332	34	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-1006	(S)	100	929	150	929	433	132.7	61.9	1991	928	282	432	40	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-1008	(S)	100	929	200	929	433	132.7	61.9	2655	1237	332	532	46	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-10010	(S)	100	929	250	929	433	132.7	61.9	3318	1546	382	632	52	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-10012	(S)	100	929	300	929	433	132.7	61.9	3982	1856	432	732	65	165	130	95	54	48	75	1	19	95	2xM12	22	XKCATG-100	73	29
CLRG-1502	(S)	150	1390	50	1390	675	198.6	96.5	993	482	196	246	39	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-1504	(S)	150	1390	100	1390	675	198.6	96.5	1986	965	246	346	52	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-1506	(S)	150	1390	150	1390	675	198.6	96.5	2978	1447	296	446	65	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-1508	(S)	150	1390	200	1390	675	198.6	96.5	3971	1930	346	546	78	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-15010	(S)	150	1390	250	1390	675	198.6	96.5	4964	2412	396	646	92	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-15012	(S)	150	1390	300	1390	675	198.6	96.5	5957	2895	446	746	105	205	159	114	61	56	94	1	19	130	2xM12	22	XKCATG-150	91	31
CLRG-2002	(S)	200	1861	50	1861	889	265.9	127	1330	635	216	266	55	235	184	133.1	67	56	113	1	24	165	4xM12	22	XKCATG-200	113	35
CLRG-2006	(S)	200	1861	150	1861	889	265.9	127	3989	1905	316	466	91	235	184	133.1	67	56	113	1	24	165	4xM12	22	XKCATG-200	113	35
CLRG-20012	(S)	200	1861	300	1861	889	265.9	127	7977	3809	466	766	146	235	184	133.1	67	56	113	1	24	165	4xM12	22	XKCATG-200	113	35
CLRG-2502	(S)	250	2565	50	2565	1068	366.4	152.6	1832	763	235	285	102	275	216	165.1	73	78	145	1	24	190	3xM12	22	XKCATG-250	144	46
CLRG-2506	(S)	250	2565	150	2565	1068	366.4	152.6	5497	2289	335	485	136	275	216	165.1	73	78	145	1	24	190	3xM12	22	XKCATG-250	144	46
CLRG-25012	(S)	250	2565	300	2565	1068	366.4	152.6	10993	4578	485	785	207	275	216	165.1	73	78	145	1	24	190	3xM12	22	XKCATG-250	144	46
CLRG-3002	(S)	300	3193	50	3193	1060	456.2	151.4	2281	757	312	362	184	310	241	197.1	101	75	177	1	19	180	3xM16	36	XKCATG-300	160	62
CLRG-3006	(S)	300	3193	150	3193	1060	456.2	151.4	6843	2270	412	562	232	310	241	197.1	101	75	177	1	19	180	3xM16	36	XKCATG-300	160	62
CLRG-30012	(S)	300	3193	300	3193	1060	456.2	151.4	13685	4541	562	862	303	310	241	197.1	101	75	177	1	19	180	3xM16	36	XKCATG-300	160	62
CLRG-4002	(S)	400	3919	50	3919	1354	559.9	193.5	2800	967	375	425	270	350	267	216	114	105	196	3	27	205	3xM16	36	XKCATG-400	193	51
CLRG-4006	(S)	400	3919	150	3919	1354	559.9	193.5	8399	2902	475	625	330	350	267	216	114	105	196	3	27	205	3xM16	36	XKCATG-400	193	51
CLRG-40012	(S)	400	3919	300	3919	1354	559.9	193.5	16797	5804	625	925	421	350	267	216	114	105	196	3	27	205	3xM16	36	XKCATG-400	193	51
CLRG-5002	(S)	500	5114	50	5114	1733	730.6	247.6	3653	1238	419	469	401	400	305	248	114	135	228	3	27	250	3xM24	38	XKCATG-500	228	63
CLRG-5006	(S)	500	5114	150	5114	1733	730.6	247.6	10959	3713	519	669	480	400	305	248	114	135	228	3	27	250	3xM24	38	XKCATG-500	228	63
CLRG-50012	(S)	500	5114	300	5114	1733	730.6	247.6	21918	7427	669	969	599	400	305	248	114	135	228	3	27	250	3xM24	38	XKCATG-500	228	63
CLRG-6002	(S)	600	5987	50	5987	2068	855.3	295.4	4276	1477	429	479	474	430	330	267	114	135	247	3	27	275	3xM24	38	XKCATG-600	241	76
CLRG-6006	(S)	600	5987	150	5987	2068	855.3	295.4	12829	4431	529	679	565	430	330	267	114	135	247	3	27	275	3xM24	38	XKCATG-600	241	76
CLRG-60012	(S)	600	5987	300	5987	2068	855.3	295.4	25659	8862	679	979	701	430	330	267	114	135	247	3	27	275	3xM24	38	XKCATG-600	241	76
CLRG-8002	(S)	800	8234	50	8234	2709	1176.3	387	5881	1935	474	524	741	505	387	317	149	135	297	3	27	330	3xM24	38	XKCATG-800	287	75
CLRG-8006	(S)	800	8234	150	8234	2709	1176.3	387	17644	5806	574	724	868	505	387	317	149	135	297	3	27	330	3xM24	38	XKCATG-800	287	75
CLRG-80012	(S)	800	8234	300	8234	2709	1176.3	387	35288	11611	724	1024	1058	505	387	317	149	135	297	3	27	330	3xM24	38	XKCATG-800	287	75
CLRG-10002	(S)	1000	10260	50	10260	3792	1465.7	541.7	7329	2709	564	614	1062	560	432	343	174	170	323	3	27	375	3xM24	38	XKCATG-1000	311	93
CLRG-10006	(S)	1000	10260	150	10260	3792	1465.7	541.7	21986	8126	664	814	1213	560	432	343	174	170	323	3	27	375	3xM24	38	XKCATG-1000	311	93
CLRG-10012	(S)	1000	10260	300	10260	3792	1465.7	541.7	43972	16252	814	1114	1439	560	432	343	174	170	323	3	27	375	3xM24	38	XKCATG-1000	311	93
CLRG-16006	(S)	1600	16024	155	16024	4891	2289.1	699.3	35495	10845	825	980	2179	710	540	450	205	170	—	—	—	400	3xM24	30	XKCATG-1600	385	125

Working Condition Example

Size Chart

Model	Cylinder Capacity		Stroke	Effective Area		Oil Capacity		Body Height A	Outside Diameter D	Saddle Diameter J	Weight
	Push	Pull		Push	Pull	Push	Pull
	(ton)	(ton)	(mm)	(cm²)	(cm²)	(cm³)	(cm³)	(mm)	(mm)	(mm)	(kg)
CLRG-502	50	22.6	50	70.8	32.3	354	162	225	127	50	17
CLRG-504	50	22.6	100	70.8	32.3	709	324	275	127	50	20
CLRG-506	50	22.6	150	70.8	32.3	1063	486	325	127	50	23
CLRG-508	50	22.6	200	70.8	32.3	1418	648	375	127	50	27
CLRG-5010	50	22.6	250	70.8	32.3	1772	810	425	127	50	31
CLRG-5012	50	22.6	300	70.8	32.3	2126	972	475	127	50	34
CLRG-1002	100	43.3	50	132.7	61.9	664	309	183	165	75	29
CLRG-1004	100	43.3	100	132.7	61.9	1327	618	233	165	75	34
CLRG-1006	100	43.3	150	132.7	61.9	1991	928	283	165	75	40
CLRG-1008	100	43.3	200	132.7	61.9	2655	1237	333	165	75	46
CLRG-10010	100	43.3	250	132.7	61.9	3318	1546	383	165	75	53
CLRG-10012	100	43.3	300	132.7	61.9	3982	1856	433	165	75	79
CLRG-1502	150	68	50	201	97.2	1005	486	210	216	94	39
CLRG-1504	150	68	100	201	97.2	2011	972	260	216	94	52
CLRG-1506	150	68	150	201	97.2	3016	1458	310	216	94	65
CLRG-1508	150	68	200	201	97.2	4021	1944	360	216	94	78
CLRG-15010	150	68	250	201	97.2	5027	2430	410	216	94	92
CLRG-15012	150	68	300	201	97.2	6032	2916	460	216	94	105
CLRG-15014	150	68	350	201	97.2	7037	3402	510	216	94	118
CLRG-2002	200	93	50	265.9	133.1	1329	665	217	240	113	55
CLRG-2006	200	93	150	265.9	133.1	3988	1997	317	240	113	91
CLRG-2008	200	93	200	265.9	133.1	5318	2663	367	240	113	109
CLRG-200010	200	93	250	265.9	133.1	6647.6	3329	417	240	113	127
CLRG-200012	200	93	300	265.9	133.1	7977	3995	467	240	113	146
CLRG-2502	250	107	50	366.4	152.6	1832	763	236	288	150	105
CLRG-2506	250	107	150	366.4	152.6	5496.5	2289	336	288	150	141
CLRG-2508	250	107	200	366.4	152.6	7329	3052	386	288	150	159
CLRG-25012	250	107	300	366.4	152.6	10993	4578	486	288	150	201
CLRG-3002	300	121	50	456.2	172.6	2281	863	312	325	139	204
CLRG-3006	300	121	150	456.2	172.6	6843	2589	412	325	139	252
CLRG-3008	300	121	200	456.2	172.6	9123	3453	462	325	139	266
CLRG-30010	300	121	250	456.2	172.6	11404	4316	512	325	139	299
CLRG-30012	300	121	300	456.2	172.6	13685	5179	562	325	139	324
CLRG-30014	300	121	350	456.2	172.6	15966	6042	612	325	139	352
CLRG-30016	300	121	400	456.2	172.6	18236	6900	662	325	139	376
CLRG-4002	400	138	50	559.9	196.8	2799	984	370	367	159	281
CLRG-4006	400	138	150	559.9	196.8	8399	2952	470	367	159	342
CLRG-4008	400	138	200	559.9	196.8	11198	3937	520	367	159	372
CLRG-40012	400	138	300	559.9	196.8	16797	5906	620	367	159	435
CLRG-5002	500	168	50	730.6	239.7	3653	1199	419	405	228	434
CLRG-5004	500	168	100	730.6	239.7	7306	2397	469	405	228	473
CLRG-5006	500	168	150	730.6	239.7	10959	3596	519	405	228	513
CLRG-50010	500	168	250	730.6	239.7	18265	5994	619	405	228	593
CLRG-50012	500	168	300	730.6	239.7	21918	7192	669	405	228	632
CLRG-6002	600	207	50	855.3	295.4	4277	1477	430	450	247	494
CLRG-6006	600	207	150	855.3	295.4	12830	4431	530	450	247	586
CLRG-6008	600	207	200	855.3	295.4	17106	5908	580	450	247	610
CLRG-60012	600	207	300	855.3	295.4	25659	8862	680	450	247	701
CLRG-8002	800	252	50	1164	360	5821	1800	417	515	297	759
CLRG-8006	800	252	150	1164	360	17462	5399	517	515	297	885
CLRG-80012	800	252	300	1164	360	34925	10797	667	515	297	1058
CLRG-10002	1000	313	50	1465.7	447.6	7329	2239	566	580	323	1012
CLRG-10006	1000	313	150	1465.7	447.6	21986	6718	666	580	323	1168
CLRG-100012	1000	313	300	1465.7	447.6	43972	13436	816	580	323	1439

Optional Attachment

The MDW square drive hydraulic torque wrench range spans 112 to 72,000 N·m in 11 standard models, with bolt capacity from M14 to M125. A single tool family covers light flange work through heavy structural bolting, so your crew standardizes on one platform with common pumps, hoses and high-strength sockets instead of mixing tools from different suppliers.

hydraulic torque wrench calibration wind turbine assembly hydraulic torque wrench calibration square drive hydraulic torque wrench CLRG

Related Products

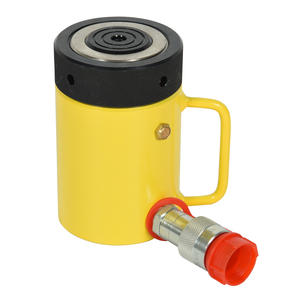

CLL
